Luminia F82 Aluminium Bifold Doors

Luminia F82 aluminium bifold doors from AluK are a slimline high performing bifolding door system. Available in a range of opening configurations, they can be custom designed to meet a selection of design specifications and all models can open either inwards or outwards. Perfect for residential and commercial applications, they are an excellent addition to any installer’s product portfolio.

• 28mm – 44mm glazing
• Optional low threshold
• 97mm frame and cill sightlines
• Square beading
• Heavy duty compact roller system
• Available with full frame

Get a Trade Quote

Product features

Specifications

Gallery

Downloads

Product features

Design features

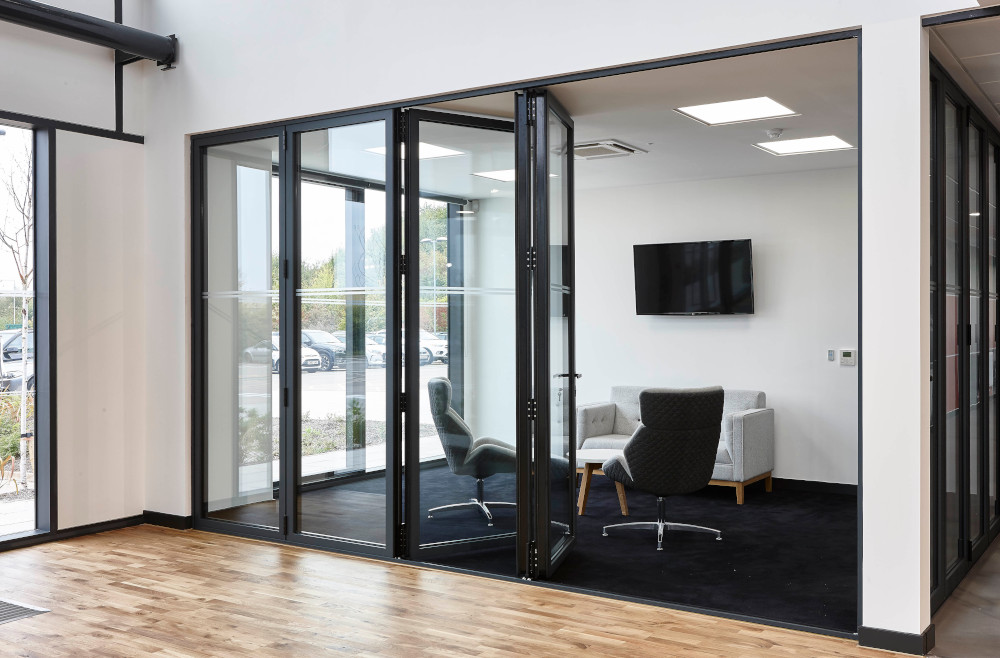

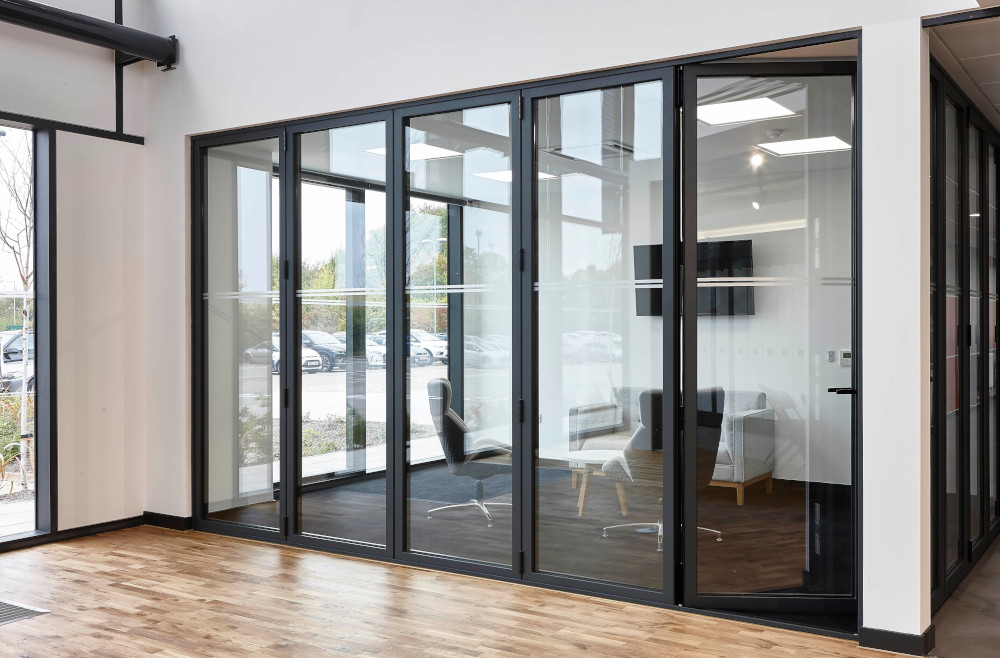

Luminia bifold doors feature a unique flush pop-out handle. This allows for ease of operation with every opening and closing and removes the need for additional unsightly handles. A unique traffic door can be chosen to function like a ‘normal’ door, and all doors interlock together for a smooth opening every time. Available with single colour, dual colour, and anodized finishes, they are a popular choice for a wide range of premium applications.

Product options

PAS 24 accredited
28mm – 44mm glazing thickness
Maximum vent weight 150kg
Class 3 air tightness
Class 5A water tightness
Internal beading
82mm frame dimension
U-values as low as 1.4 W/m²K (double glazing)
U-values as low as 1.1 W/m²K (triple glazing)

Specifications

Frame depth

Glazing thickness

Glazing method

Interlock sightline

Frame/head sightline

U-Value

Air permeability

Water tightness

Wind resistance

Enhanced security

Threshold height (Standard)

Threshold height (Standard + Cill)

Threshold height (Low)

Threshold height (Low + Cill)

Luminia F82

82mm

28 - 54mm

Internally beaded

122mm

97mm

From 0.9 W/m²K

Class 4

Class 9A

Class 5

PAS24

46.5mm

71.5mm

29.5mm

54.5mm

Gallery

Downloads

AluK Luminia F82 Bi-Fold Door Download

Beautiful bespoke aluminium bifold doors

AluK Luminia F82 aluminium bifold doors provide some of the most attractive aesthetics available today. They can be used in both residential and commercial applications and can function as an exterior patio door or as a stylish partition between two different areas in an office or commercial building. Designed to maximise thermal performance, enhance security, and create a visually stunning appearance, the Luminia F82 bifold door is the go-to aluminium bifold door system for many glazing installers across the UK.
